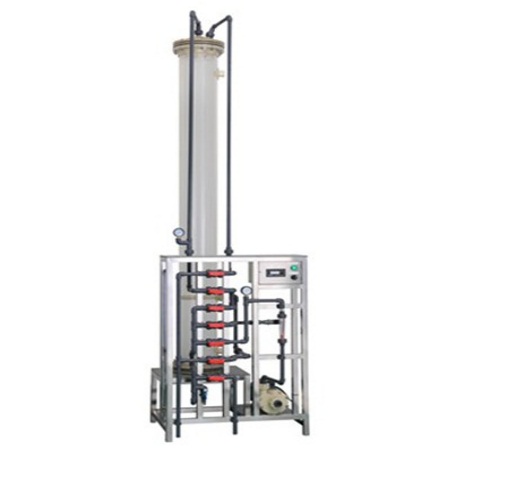

Ro(Reverse osmosis), mix bed device features

Reverse osmosis and mixed bed preparation of pure water system, the tap water as raw water, after pre- processing, and then through the RO reverse osmosis treatment. After a series of treatment, dissolved salt can remove particles, colloid, organic impurities, heavy metals, bacteria, viruses, harmful substances such as heat source and the system 99%, desalination rate as high as 96 ~ 99%. After the mixed bed resin Yin, Yang deep desalting, the effluent conductivity control in ≤ 1 μ s/cm. Pure water is produced after sterilization by ultraviolet.

Composition of reverse osmosis, mixed bed device

The system includes pre- processing part (booster pump, precision quartz sand filter, activated carbon adsorption filter quality, 5 μ M filter), RO reverse osmosis part (equipment control, high pressure water pump, RO components, control sensor), mixed bed part (mixed bed column, cation resin, anion exchange resin). Water finally into pure water tank, pump water to pure water, pure water tank to prevent bacterial contamination of RO water, ensure that the effluent quality

Reverse osmosis, mixed bed device control and performance

Reverse osmosis system core components are imported film assembly；
Anhydrous low pressure or water full automatic shutdown；
Adopting automatic control, RO film automatic flushing, reduces the pollution rate；
When the pure water tank don’t have water it could automatic clean；
Low voltage switch protection of high pressure pump will not stop and damaged because water supply；
The high efficiency and low noise high pressure pump can reduce the operation noise and reduce the energy consumption；
Water conductivity meter continuously monitors the quality of water；
Water inlet and drainage pressure gauge can monitor reverse osmosis membrane pressure difference continuous , when in need of cleaning tips；
Automatic water supply valve to avoid the shutdown of water continues to flow.

Process flow diagram: A.Raw water B.Booster pump C.Quartz sand filter D.Activated carbon filter E.Softener (optional) F.Security filter G.High-pressure pump H.Reverse osmosis system I.Mixed bed J.Pure water tank (water).
