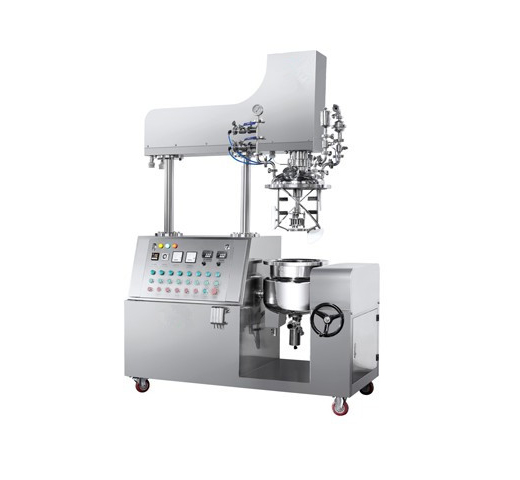

JF-A Small Laboratory Emulsifier

Small vacuum homogeneous emulsifying machine is suitable for various type of ointment, honey products, small, pilot or a board, it is the cosmetics, pharmaceutical production enterprises laboratory indispensable experimental tool. Equipment has complete function, reliable quality.

Product introduction

Small vacuum homogeneous emulsifying machine is suitable for various type of ointment, honey products, small, pilot or a board, it is the cosmetics, pharmaceutical production enterprises laboratory indispensable experimental tool. Equipment has complete function, reliable quality.

This equipment is a set of vacuum deaeration, mixing, homogenizing, heating, electric control and other functions in one, equipment is composed by the vacuum homogenizing emulsifying pot, vacuum system, a lifting system. It is also according to the requirements of the production process supporting oil and water pot.

Characteristic

The main boiler capable of automatic lifting, dumping of discharge, to ensure maximum material completely discharging, configuration top homogenizer or bottom homogenizer can be variable frequency speed.

Lifting type lower homogenization

Technical features: the cover of main boiler tank can be lifted and lowered automatically ,and it is equipped with lower homogenizer and tilting discharging method to enhance the homogenizing effect of materials to the greatest extent .

Working capacity :5L, 10L

Homogenizing speed: 50-3500RPM(frequency conversion speed adjustment)

Lifting type external circulation

Technical features : the cover of main boiler tank can be lifted and lowered automatically ,and it is equipped with external circulation homogenizer to enhance the homogenizing effect of materials to the greatest extent .

Working capacity : 10L, 20L, 30L

Homogenizing speed : 50-3500RPM(frequency conversion speed adjustment )

Lifting type external circulation

Model JF-A-5 JF-A-10 JF-A-20 JF-A-30
Emulsifying pot volume 5L 10 L 20 L 30L
Emulsifying the pot temperature ≤120 ℃ ≤120 ℃ ≤120 ℃ ≤120 ℃
Jacketed pressure Atmospheric pressure
Speed of Scraping Plate Blender 0-60 r/min
Homogenizer speed 2880 r/min
Voltage 50Hz
380V±10%-15%

Note: In case of nonconformity of the data in the table due to technical improvement or customization, the real objects shall prevail.
